URBAN T22-C2 63
1,00 €

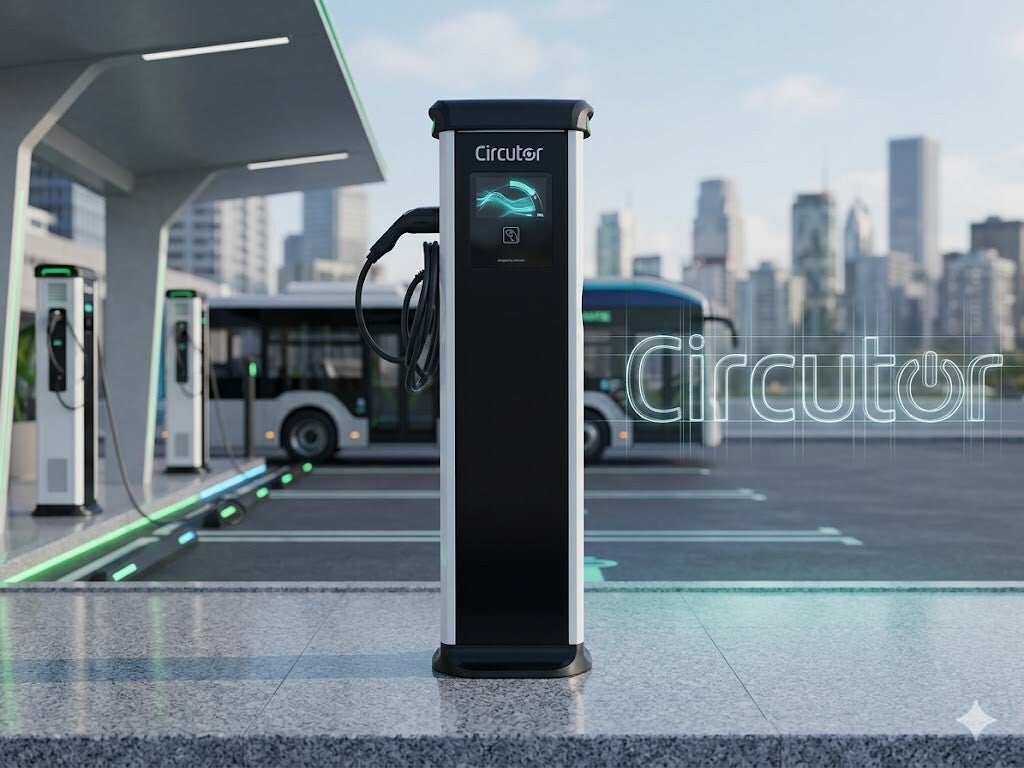

URBAN T22-C2 63, Outdoor recharge post
Code: V1062C.
- Communications: Ethernet | WiFi
- Voltage sortie: 400 Vca - 63 A - 43 kW
- Ampère : 64 A
- Connecteur type: Type 2 cable
- Three-phase
- Charge mode: 3
- No. Sockets: 1
- Protection: Type B
SPECIFICATIONS
AC power supply
Nominal voltage
400 V ~ (± 10%)
Frequency
50/60 Hz
Input intensity
63 A
Type of network
3F + N + PE
Electrical characteristics
No. of charges
1
Charging mode
Mode 3 (IEC 61851-1)
Wireless communication
Technology / Type
Wi-Fi
Communication Network
Technology / Interface
Ethernet 10/100 Base TX (TCP/IP)
Protocol
OCPP 1.6J / 2.0 HW Ready
User interface
Display type
LCD Multi-idiomas
RFID (Radio-Frequency Identification)
ISO/IEC 14443 A/B, FELICA, ISO/IEC 15693 / ICODE
LED
Indicador de carga en color RGB
Environmental characteristics
Working temperature
-5 … +45 ºC
Storage temperature
-20 … +60 ºC
Relative humidity (without condensation)
5 … 95 %
Protection class
IP 54 / IK10
Mechanical characteristics
Envelope
Aluminio y ABS
Fastening
Fijación al suelo con 4 pernos
Weight (kg)
55
Size (mm) width x height x depth
450 x 1550 x 290 (mm)
Protection
Element
- MCB (80A) Curva de disparo "C" por toma. - RCD Tipo B por toma.
Features / performance
Energy measurement
MID Class B meter, EN 50470-3
Optional
• 4G / GPRS Modem
• Terminal de pago Cloud (Marca: Payter, Modelo: Apollo)
• Protector contra sobretensión transitoria IEC 61643-1 (Clase II)
• Kit de baja temperatura (-30 ºC)
Network type
Trifásica (CA)
Connector type
Cable Type 2 (Long 5m)
Maximum power
43 kW
Voltage range
400 Vca
Maximum current
63 A
IEC 61851-1, IEC 61851-21-1, IEC 62196-1, IEC 62196-2, Directiva 2014/35/UE, LVD; 2014/30/UE, EMC
